TMBP2-XC
The largest embroidery field in the Single-head machine lineup. Single-head Cylinder Type Standard Model.

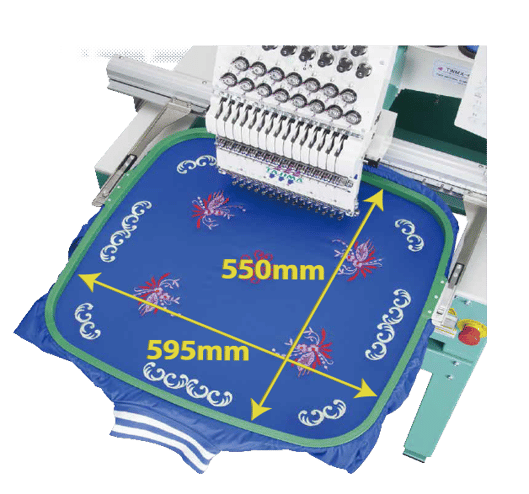

Large embroidery field
With an embroidery field of 550 mm(21.6inches) (D) x 600 mm(23.6inches) (W), it is ideal for large embroidery designs such as dresses and sweatshirts, tablecloths, curtains etc.
Wide variety of additional frames
In addition to embroidering large items using the wide embroidery field, the frame can be changed to accommodate smaller items such as caps, bags, and socks. This single head machine can embroider a wide variety of items, large and small, with high quality embroidery.
X-extension Unit allows even wider embroidery
The embroidery field can be further expanded with the X-extension Unit’s dedicated frame (optional) and table (optional). It is suited for embroidering large flags, store awnings, etc.
※X-extension Unit embroidery field：550 mm(21.6inches) (D) x 1,200 mm(47.2inches) (W)
User-Friendly Design
This machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.
12.1-inch touch panel
The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.
New auto thread trimming device
Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.
Design position adjustment function(corrects framing misalignment)
Even if the fabric pattern is slanted in framing, it can be corrected from the operation panel, with no need for repeated attempts to reframe.
Tajima’s Customer Support Services
Offer Personalized Embroidery Through E-Commerce and Stores
PulseID provides comprehensive support for embroidery personalization, from receiving in-store or online e-commerce orders to production and management. It saves labor and increases efficiency while helping enhance brand loyalty and advertising effectiveness.
| Needles | Embroidery field （D×W） | Width | Overall Width | Depth | Height | ||||
|---|---|---|---|---|---|---|---|---|---|
| Border Frame | Wide Cap Frame | Semi-wide Cap Frame |
Tubular Frame | Pocket Frame | |||||
| 12/15 | 550×600 mm 21.6×23.6 inch |
75×360 mm 2.9×14.1 inch |
83×180 mm 3.2×7.0 inch |
600×550 mm 23.6×21.6 inch |
① 65×100 mm 2.6×3.9 inch ② 100×75 mm 3.9×3.0 inch |
1,130 mm 40.5 inch |
1,286 mm 50.6 inch |
959 mm 37.8 inch |
1,006 mm 39.6 inch |
| with X-extension Unit (option) | 550×1,200 mm 21.6×47.2 inch |
2,514 mm 99.0 inch |
2,675 mm 105.3 inch |
1,499 mm 59.0 inch |
1,610 mm 63.4 inch |
||||
*Power supply
Single-phase 100-120V / 200-240V 50Hz/60Hz
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
Factory options support a wider variety of embroidery expression and increase production efficiency
Sequin Device
KB-2M
Position Marker
Laser Crosshair Marker
Beam Sensor
Embroidery frame that can be applied to various items
Tubular Frame
Border Frame
Cap Frame
Pocket Frame
Sock Frame
M-Frame
Air Type Clamp Frame
Air Type Pocket Frame
X-extension Unit
