TMBR2-SC1501

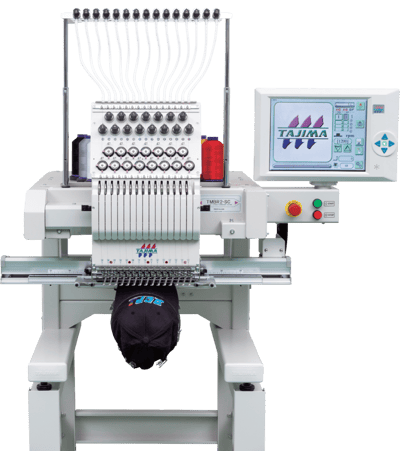

    The Tajima TMBR2-SC features a digitally-controlled presser foot (DCP), network access, and a slim cylinder design for easier access. The reinforced Wide Cap Frame has enhanced the embroidery stability whereby increasing the rotational speed to 1000rpm. TMBR2-SC is available with 15 or 18 needles, and  equipped with the largest touchscreen controls available on the market!

12-1 touch panel-1


Higher Memory Capacity:

Maximum Design Storage - 650 files

Maximum Stitch Count - 40 million

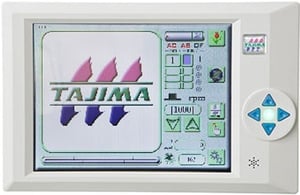

 Larger Touchscreen Controls

The 12.1-inch operation panel is equipped with many useful icons and multilingual displays. The touch screen panel allows for easy operation.

type 2 hoops



TMBR type 2-1



Download Brochure

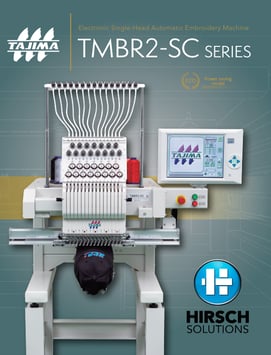

TMBR2-sc cover



TMBR FEATURES

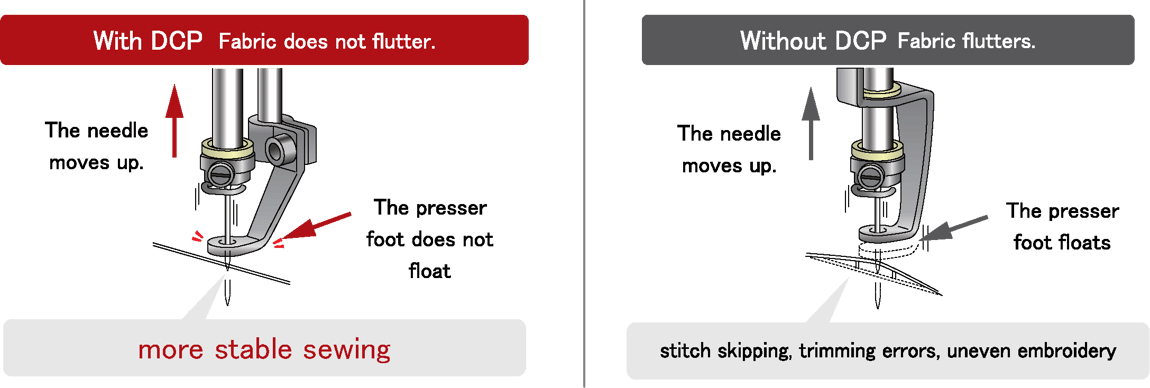

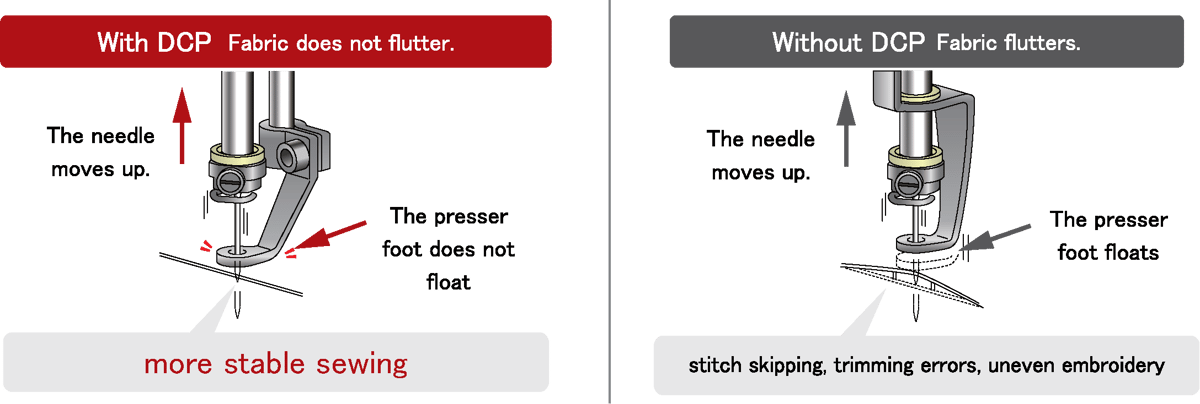

   A digitally controlled presser foot that responds to changes in fabric thickness stitch by stitch. Accurate and beautiful embroidery from thin to 3D embroidery with no settings required. The machine reduces the fluttering of the fabric at the start of sewing and during thread trimming, minimizing problems such as skip stitch and thread trimming failure.

















Slim Cylinder





Slim Cylinder makes it possible to embroider on smaller products such as socks, gloves, and pockets.













Versatile Cap Driver





The cap driver incorporates a lower shaft and a third locking pin to stabilize the cap during embroidery to enhance quality, and run at higher speeds.













Design Position Adjustment





Design Position Adjustment feature allows a design to follow any reference line of your choice ensuring perfect alignment every time.















Thread Locking





The Thread Locking System secures the thread after a trim to help prevent the thread pulling out during needle startup.













Trimmed Needle Plate





A shorter distance between the needle hole and the edge of the trimmed needle plate offers an increased embroidery area on many items.













LED Position Marker





A red dot projected above the needle hole helps identify the actual embroidery area when tracing the design before stitching.













LED Needle Base Light





The LED Needle Base Light illuminates the needle area and provides the operator a better view of the item being embroidered.













Steeper Head Tilt





The Steeper Tilt Head angles the bill of a cap more which allows stitching closer to the bill and increases the embroidery area.

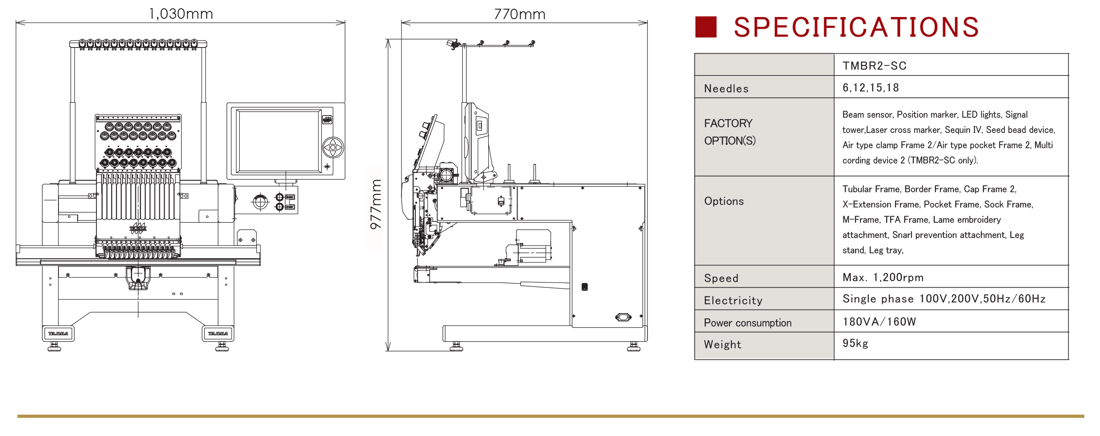

SPECIFICATIONS

TMBR2 spec detail

TMBR VIDEOS







Related Products

IS the

TMBR2-SC

right for you?

Enter your info below and a Hirsch sales representative will contact you about adding Tajima TMBP-1501 to your business.
